Features

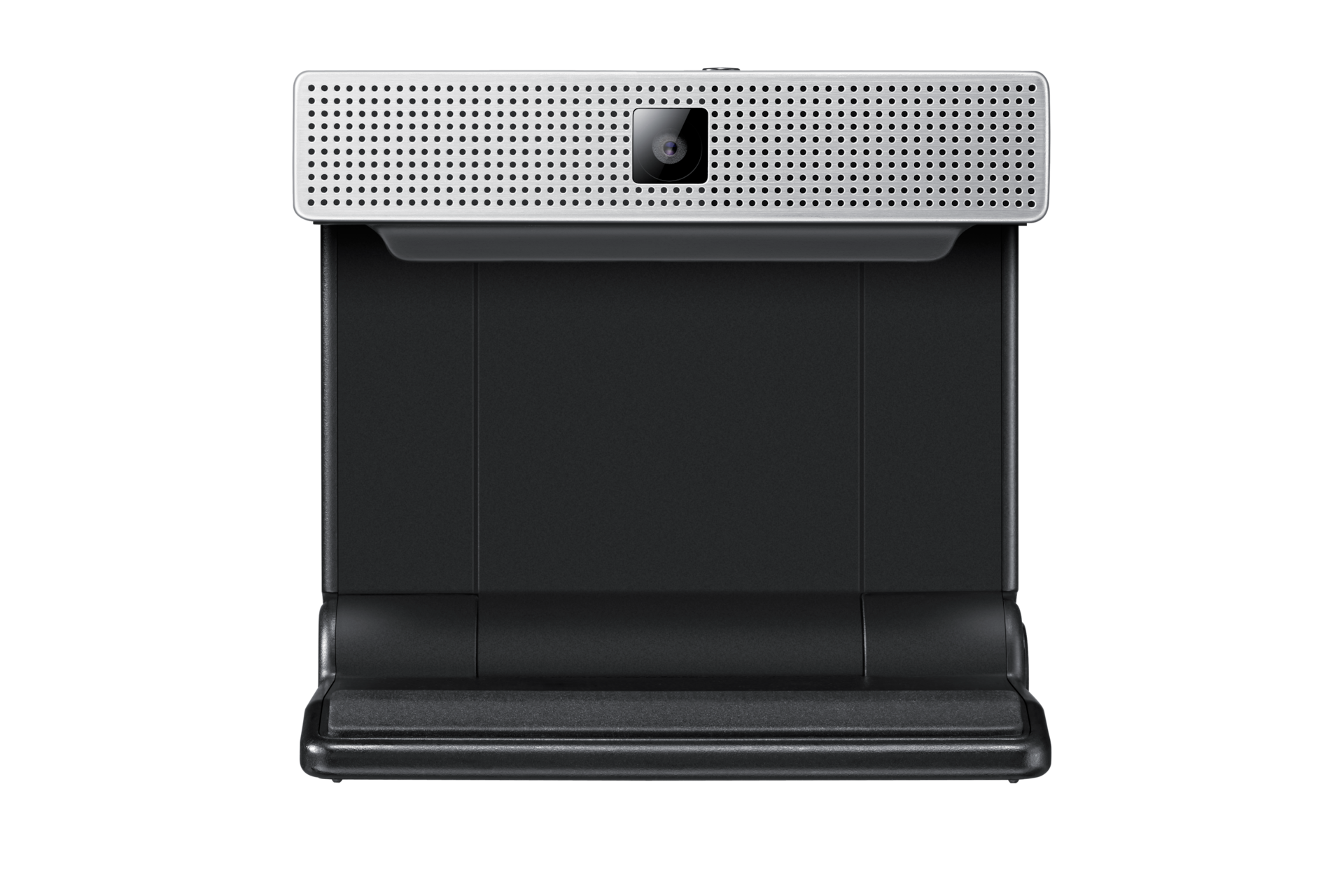

Minimal design delivers enhanced interactivity
Specifications
-
Bit Rate
16 bit
-
Format
PCM
-
MIC Directivity
Uni-Directional
-
MIC Sensitivity
< -39dBov RMS
-
MIC SNR
68dBA
-
Number of MIC
2ea
-
Sampling Rate
24KHz
-
Voltage
5V 0.5A
-
LED TV
2013 F4500, F5300, F5400, F5500, F6200 ~ F6800 2012 EH4500, EH5300, EH5450, ES5500, ES5700 ~ ES6900 2011 D6500 and above (32" and above)
-
Plasma TV
2013 F5500 2012 E550, E6500 2011 D8000
-
Format
H.264 Base Line Profile
-
Maximum Frame Per Seconds
30fps
-
Maximum Resolution
1280 x 720
-
Myself Frame Per Seconds
30 fps
-
Myself Resolution
640 x 480
-
Embedded ISP(Image Signal Processor)
Yes
-
Interface to Backend
MIPI 2-lane
-
Resolution
5.0 Mpixels
-
Digital Zoom
2x
-
Focus
Fixed
-
Piece
4 Plastic
-
Real FOV(Field of View)
65.5° (Horizontal)
-
USB 2.0
-
Yes
-
Set (g)
113
-
Package (g)
176.5
-
User Manual
Yes
-
USB Cable
Yes
-
USB Cable Clip
Yes
-
Main Chipset
AIT8453
-
Operating Mode
Real Time OS
-
Memory System
Stacked 128 Mbits
-

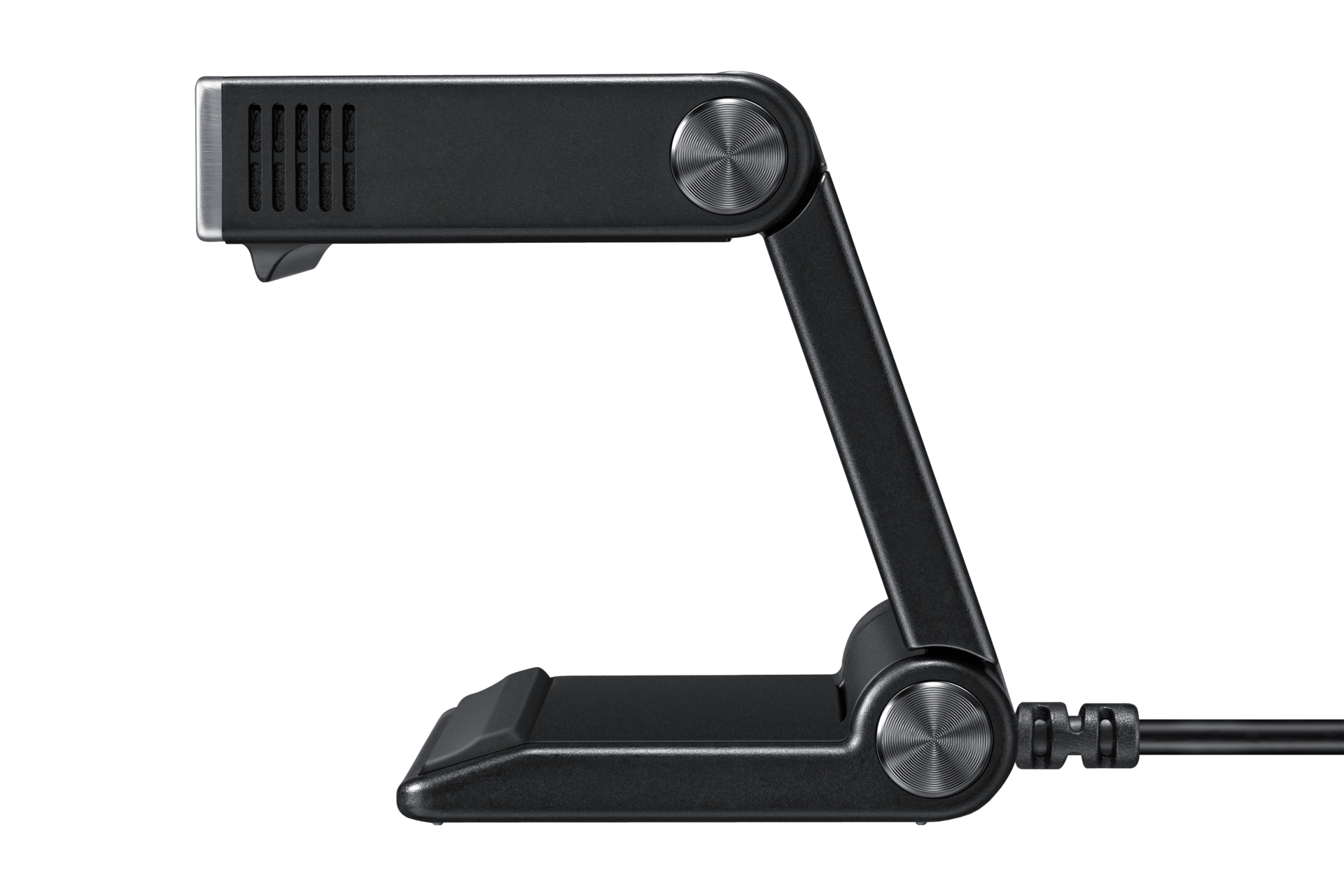

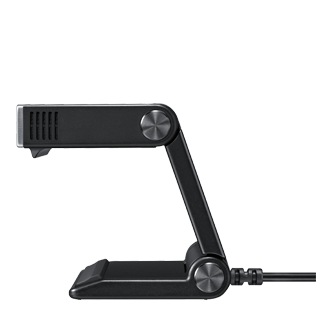

Tilting
Support
-
Tilting Angle
+10 - -30°C
-
Method of Mounting on TV
Hanging with Dual hinge
-
Set (W x H x D) (mm)
60 x 12 x 122
-
Package (W x H x D) (mm)
80 x 168 x 35
